Maxi Move 5

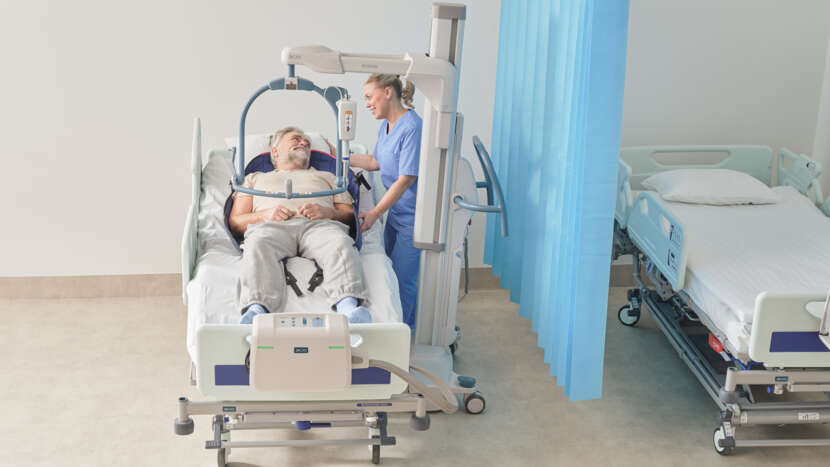

Maxi Move 5 is a versatile solution that meets the mobility needs of patients across a wide range of care situations. Promoting care flow efficiency, safety and control, enabling ergonomic transfers with comfort and dignity in mind.

• Intuitive manoeuvrability and reduced muscle effort
With the Arjo Motion Assist™ system, Maxi Move 5 is designed to lessen the load of manoeuvring and make positioning more precise within the constraints of care spaces. Maxi Move 5’s touch sensors, responsive to push, pull and pivot movements, allow caregivers to make more efficient, controlled and intuitive transfers.

• Efficient positioning with a single caregiver
Driven by the Powered Dynamic Positioning System (PDPS), Maxi Move 5 reduces the physical effort and time required, enabling tasks to be completed by a single caregiver, leaving more time to promote comfort and person-centred care.

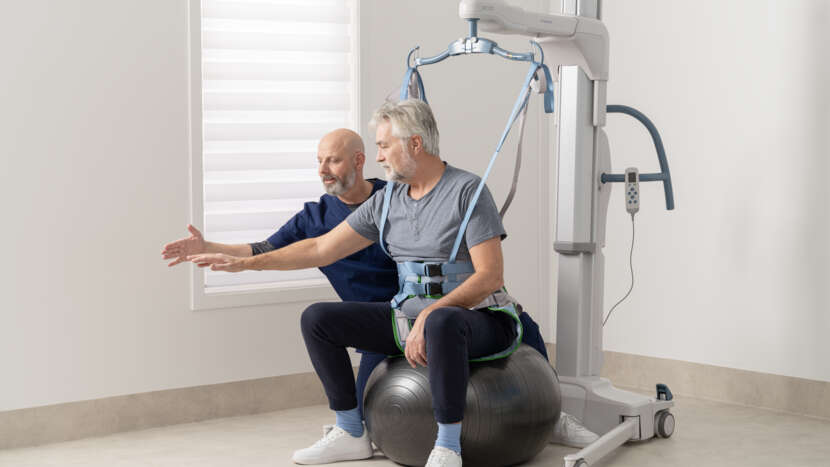

• Promoting healthier outcomes through mobility
With its wide range of spreader bars and slings, Maxi Move 5 is designed to optimise patient mobility throughout the care flow, reducing immobility related risks and enabling healthier outcomes.

• Designed for people with cognitive impairment
Maxi Move 5 supports the caregiver through a focus on the needs of people with cognitive impairment. Its round corners, soft-starting lift, quiet operation and contrasting colors promote dignity and comfort for the patient – and efficient care flows for the caregiver.

• Supporting diverse patient and task needs
Maxi Move 5 comes in two variants to meet the demands of a wider range of patient profiles and needs. In combination with a wide range of spreader bars and slings, it enables the caregiver do more with a single device.

Capacity*
Maxi Move 5 is offered in two variants (227kg/500lb & 272kg/600lb) to meet the safe working load capacity needs

Scale*
Integrated scale supports an efficient weighing routine

Combi Attachment
The combi attachment makes it simple to change between different spreader bars and stretcher frames

Power Dynamic Positioning System (PDPS)
Minimises manual handling and allows patients to be positioned with greater precision

Castor Size*
Three castor sizes available: standard, low and extra-low to facilitate access under low beds and trolleys

Coated Lifting Strap
The lifting strap has been coated in a non-porous material to minimize risk of cross contamination through ease of cleaning and risk of microbial growth

Telescopic Vertical Mast
Vertical mast provides stability while the patient is lifted

Motion Assist*
Powered drive operated via touch sensors on the caregiver handle that reacts to push, pull and pivoting motions, enabling efficient, controlled and intuitive transfers

Dual Controls
Dual controls on the mast and the hand control enable the caregiver to remain close to the patient throughout the transfer process

Dual Operation
During lift operation two functions can be used at the same time to improve efficiency

Break Toggle
Brakes easily activated and deactivated on the base

* Feature configurable

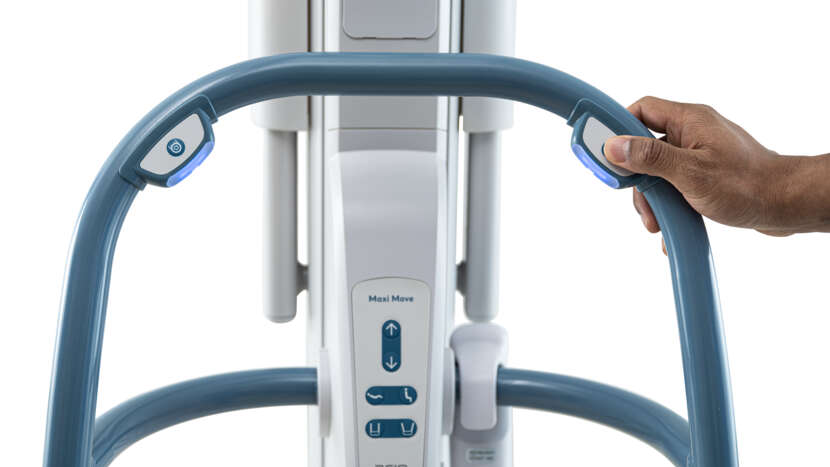

Motion Assist
When the caregiver activates the Motion Assist system, a blue light becomes visible on the handle while the function is active

Maxi Move 5’s touch sensors, responsive to push, pull and pivot movements, allow caregivers to make more efficient, controlled, intuitive transfers – for patients up to 272 kg / 600 Ib

Product Information Standard Capacity
Max. safe working load	227 kg / 500 lb
Lifter weight (incl. spreader bar and battery)	75.4 kg / 162.2 lb
Max. lifting height	1542 mm / 60 3/4 in
Min. lifting height	104 mm / 4 1/8 in
Min. storage height	1416 mm / 53 3/4 in
Lifting interval	1438 mm / 56 5/8 in
Max. reach (from column to end of mast)	614 mm / 24 3/16 in
Lifter length	1279 mm / 50 3/8 in
External width legs closed	665 mm / 26 3/16 in
External width legs open	1102 mm / 43 3/8 in
Internal width legs closed	529 mm / 20 13/16 in
Internal width legs open	967 mm / 38 1/16 in
Min. width	668 mm / 26 5/16 in
Leg clearance (floor to top of legs)	113 mm / 4 7 /16 in (std), 100 mm / 3 15/16 in (low), 59 mm / 2 5 /16 in (extra low)
Chassis clearance (floor to bottom of chassis)	24 mm / 15/16 in (std & low), 19 mm / 12/16 in (extra low)
Turning diameter	1227 mm / 48 5/16 in
Lifting speed	41-45 mm/s
Lifter protection class	IP24
Hand control protection class	IPX7
Battery	24V, 4 Ah
Battery charge indicator (displayed on hand control)	.
Cycle counter (displayed on hand control)	.
Overload indicator (displayed on hand control)	.
Automatic safety cut-out if lowered onto an obstacle (spreader bar & lifting column)	.
Emergency stop and system failure override	.
Product Information High Capacity
Max. safe working load	272 kg / 600 lb
Lifter weight (incl. spreader bar and battery)	75.6 kg / 166.7 lb
Max. lifting height	1542 mm / 60 3/4 in
Min. lifting height	104 mm / 4 1/8 in
Min. storage height	1416 mm / 53 3/4 in
Lifting interval	1438 mm / 56 5/8 in
Max. reach (from column to end of mast)	614 mm / 24 3/16 in
Lifter length	1324 mm / 52 1/8 in
External width legs closed	749 mm / 29 1/2 in
External width legs open	1219 mm / 48 in
Internal width legs closed	614 mm / 24 3/16 in
Internal width legs open	1083 mm / 42 5/8 in
Min. width	754 mm / 29 11/16 in
Leg clearance (floor to top of legs)	113 mm / 4 7 /16 in (std), 100 mm / 3 15/16 in (low), 59 mm / 2 5 /16 in (extra low)
Chassis clearance (floor to bottom of chassis)	24 mm / 15/16 in (std & low), 19 mm / 12/16 in (extra low)
Turning diameter	1309 mm / 51 9/16 in
Lifting speed	41-45 mm/s
Lifter protection class	IP24
Hand control protection class	IPX7
Battery	24V, 4 Ah
Battery charge indicator (displayed on hand control)	.
Cycle counter (displayed on hand control)	.
Overload indicator (displayed on hand control)	.
Automatic safety cut-out if lowered onto an obstacle (spreader bar & lifting column)	.
Emergency stop and system failure override	.
Accessories
A wide selection of spreader bars and slings	.
Stretcher solutions (soft stretcher, strap stretcher and scoop stretcher)	.
Wall mounted battery charger	.
Battery pack	.
Plastic leg covers	.
Maxi Cart 2 (storage and transportation cart for spreader bars)	.
Wall support kit (storage for spreader bars)	.
Spreader Bars
Two-point loop	.
Two-point medium loop	.
Four-point loop	.
Medium Powered DPS	.
Large Powered DPS	.
Stretcher frame	.
Configurable Options
Integrated scale	.
Motion Assist	.
Safe working load capacity	.
Castor size	.
